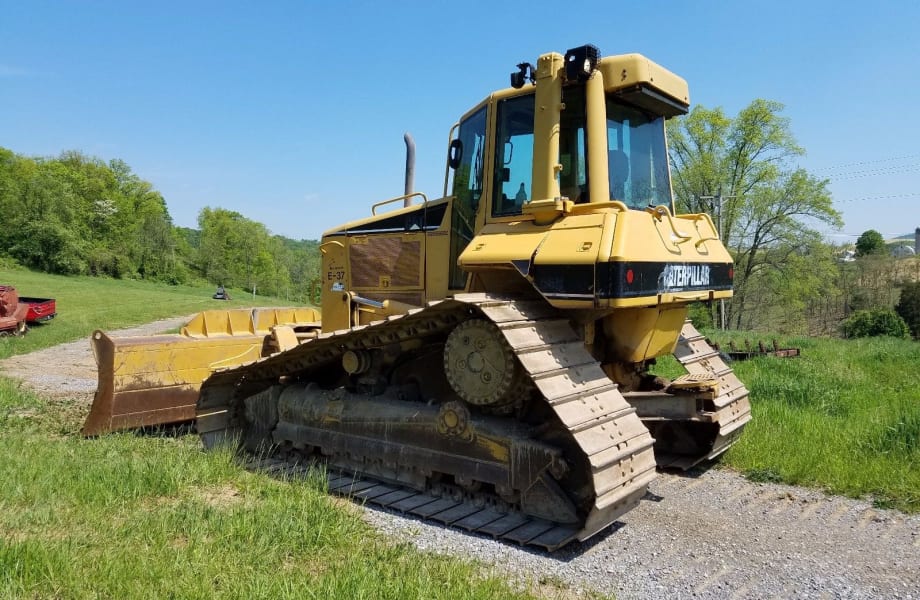

he latest in the line of Cat D6N dozers combines well-known versatility with a range of technology features to give you more job site productivity than ever before. A new transmission with lock-up clutch torque converter delivers ease of operation, increased net power, plus a 10-15 percent improvement in fuel efficiency. The D6N has the weight and horsepower you want for dozing applications and the balance and stability you need for finish grading – all in one easyto-transport machine.

Dimensions:

Ground Clearance: 1.8 ft
Height - Top of Cab: 10.2 ft
Length of Track on Ground: 10.3 ft
Length w/o Blade: 12.3 ft
Width Over Tracks: 8.2 ft in

Engine:

Displacement: 402.8 cu in
Engine Model: C6.6 ACERT
Make: Cat
Model: C6.6 ACERT
Net Power: 150 hp
Number of Cylinders: 6
Power Measured @: 2000 rpm

Operating Specifications:

Alternator Supplied Amperage: 95 A
Cooling System Fluid Capacity: 9.3 gal
Final Drives Fluid Capacity: 1.9 gal
Fuel Capacity: 79 gal
Hydraulic Fluid Capacity: 7.8 gal
Operating Voltage: 24 V
Operating Weight: 39222 lbs

Standard Blade:

Capacity: 4.2 cu yds
Width: 13.4 ft

Transmission:

Max Speed - Forward: 6.3 mph
Max Speed - Reverse: 7.3 mph
Number of Forward Gears: 5
Number of Reverse Gears: 5
Transmission Type: Hydrostatic

Undercarriage:

Ground Contact Area: 8122 cu in
Ground Pressure: 4.8 psi
Number of Shoes per Side: 46
Number of Track Rollers per Side: 8
Standard Shoe Size: 33.1 in
Track Gauge: 7.1 ft

Engine:

Make: Cat
Model: C6.6 ACERT
Net Power: 150 hp

Operating Specifications:

Operating Weight: 39112 lbs
