General
Year 2018
Manufacturer CASE

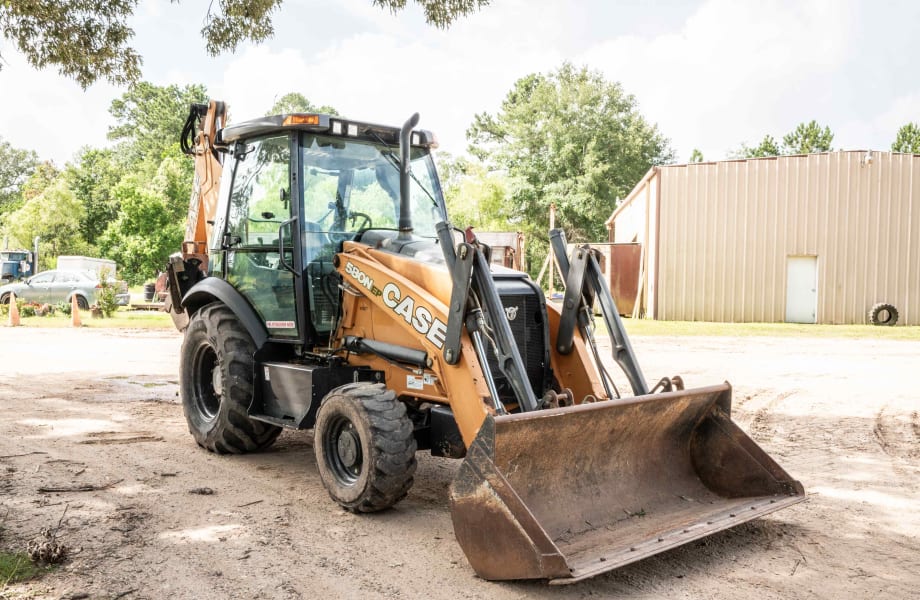

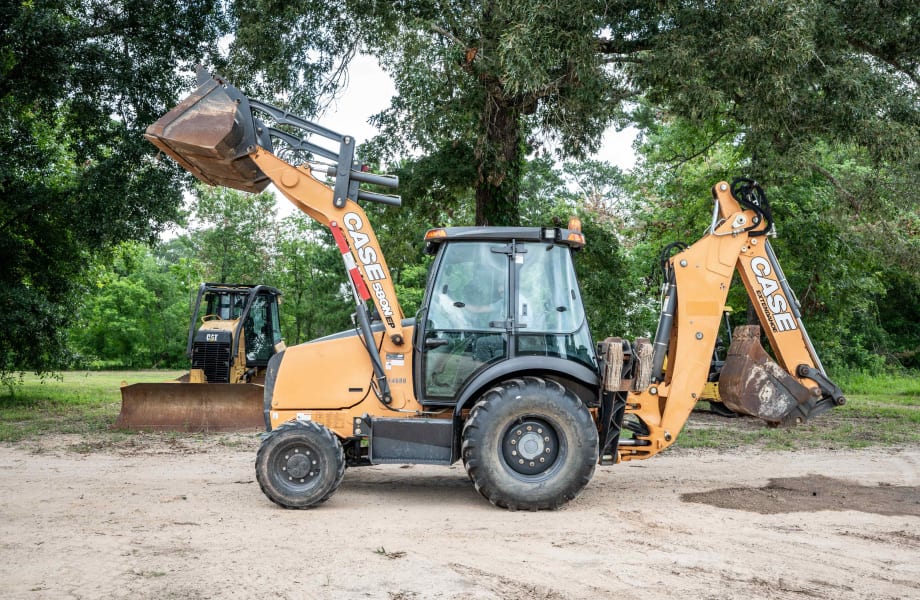

Model 580N
Hours 743
Serial Number JJGN58EPPJC750XXX
Condition Used

Description

Backhoe

Dig Depth 15 ft (5 m)
Dig Depth - Extended 18 ft (6 m)
Load Height 12 ft (4 m)
Load Height - Extended 14 ft (4 m)
Reach at Load Height - Extended 9 ft (3 m)
Reach From Swivel 18 ft (6 m)
Reach From Swivel - Extended 22 ft (7 m)

Brakes

Service brake Wet Disc

Capacities

Engine oil with filter 2 gal (8 l)
Front axle 336 cu in (5,501 cu cm)
Fuel Tank 30 gal (114 l)
Rear Axle 4 gal (14 l)

Dimensions

Ground Clearance 1 ft (0 m)
Transport Length 23 ft (7 m)
Transport Width 7 ft (2 m)
Wheelbase 7 ft (2 m)

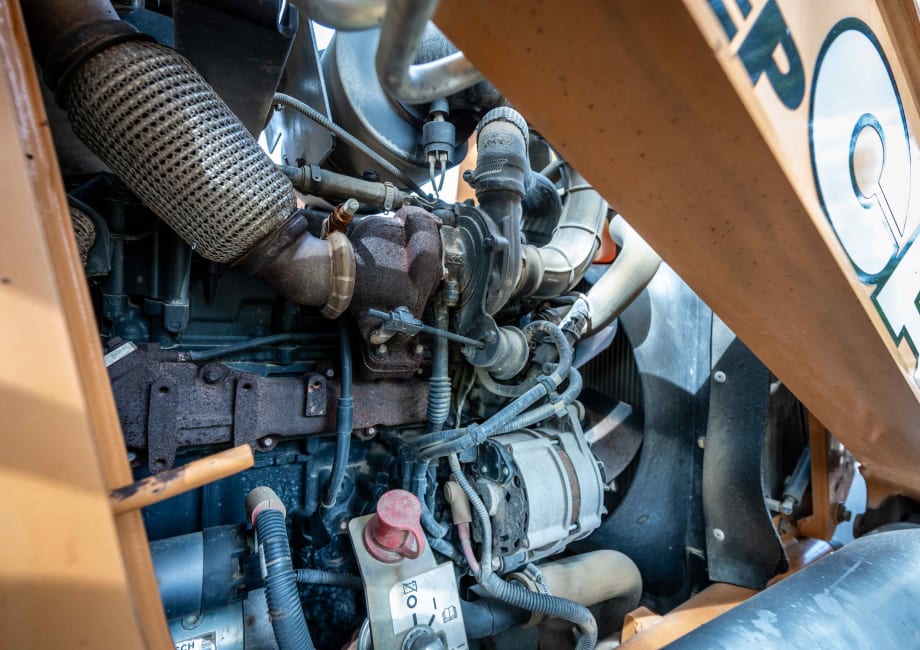

Engine

Aspiration Turbocharged
Displacement 208 cu in (3,400 cu cm)
Emissions Certification Tier 4 Final
Engine Model FPT F5HFL463D
Gross Power 74 hp (55 kw)
Net Max Torque 306 lbs ft (415 nm)
Net Power 68 hp (51 kw)
Number of Cylinders 4
Power Measured @ 2200 rpm
Torque Measured @ 1400 rpm

Hydraulic System

Pump Flow Capacity 29 gpm (108 lpm)
Pump Type Parker P330 Single Selection Gear
Relief Valve Pressure 3350 psi

Loader

Bucket Breakout Force 10,622 lbs (4,818 kg)
Bucket Capacity 1 cu yd (1 cu m)
Bucket Width 82 in (208 cm)
Clearance at Max Dump Height 9 ft (3 m)
Dig Depth 179 in (454 cm)
Lift Capacity 6,803 lbs (3,086 kg)
Reach at Max Dump Height 3 ft (1 m)

Operating Specifications

Alternator Supplied Amperage 120 amps
Backhoe Flow- gallons 29 gpm (108 lpm)
Cooling System Fluid Capacity 5 gal (17 l)
Front Axle Fluid Capacity 2 gal (8 l)
Fuel Capacity 42 gal (159 l)
Hydraulic System Fluid Capacity 28 gal (106 l)
Max Weight 17,454 lbs (7,917 kg)
Oil System Fluid Capacity 4 gal (14 l)
Operating Voltage 12 volts
Operating Weight 15,810 lbs (7,171 kg)
Operating Weight 2wd 14,564 lbs (6,606 kg)
Operating Weight 4wd 15,862 lbs (7,195 kg)
Rear Axle Fluid Capacity 4 gal (14 l)
Tire Size Front - 2wd / 4wd 11L x 16 / 12x 16.5
Transmission Fluid Capacity 5 gal (19 l)
Turning Radius 11 ft (3 m)

Performance

Bucket digging force (ISO) 113 lbs (51 kg)
Dipper stick Lift Capacity 4,343 lbs (1,970 kg)

Tires

Front Tires Size 12L x 16.5 (4WD)
Rear Tires Size 19.5L x 24

Transmission

Max Speed 21 mph (34 kph)
Max Speed - Reverse 29 mph (47 kph)
Number of Forward Gears 4
Number of Reverse Gears 4
Transmission Type Power shuttle
